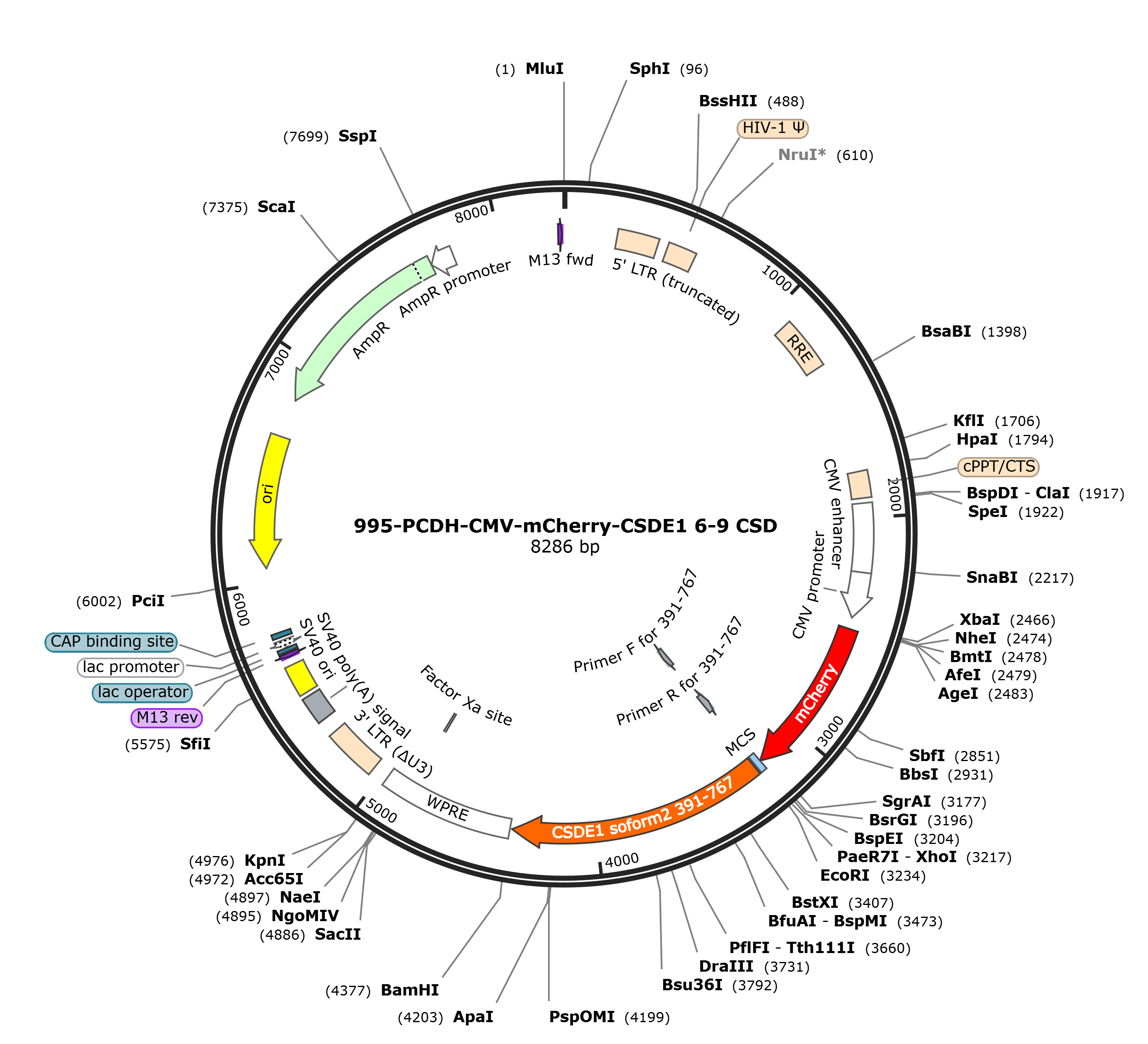

pCDH-CMV-mCherry-CSDE1 6-9CSD

LOCUS       pCDH-CMV-mCherry-CSDE1 6-9CSD               8286 bp DNA     circular SYN 25-APR-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8286)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 2, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8286
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     2909..2928
                     /label=mCherry-F
     misc_feature    complement(3204..3242)
                     /label=Primer R for 391-767
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     misc_feature    3222..3260
                     /label=Primer F for 391-767
     CDS             3240..4373
                     /codon_start=1
                     /label=CSDE1 soform2 391-767
                     /translation="MSHSDHRFLGTVEKEATFSNPKTTSPNKGKEKEAEDGIIAYDDCG
                     VKLTIAFQAKDVEGSTSPQIGDKVEFSISDKQRPGQQVATCVRLLGRNSNSKRLLGYVA
                     TLKDNFGFIETANHDKEIFFHYSEFSGDVDSLELGDMVEYSLSKGKGNKVSAEKVNKTH
                     SVNGITEEADPTIYSGKVIRPLRSVDPTQTEYQGMIEIVEEGDMKGEVYPFGIVGMANK
                     GDCLQKGESVKFQLCVLGQNAQTMAYNITPLRRATVECVKDQFGFINYEVGDSKKLFFH
                     VKEVQDGIELQAGDEVEFSVILNQRTGKCSACNVWRVCEGPKAVAAPRPDRLVNRLKNI
                     TLDDASAPRLMVLRQPRGPDNSMGFGAERKIRQAGVID"
     primer_bind     complement(3722..3739)
                     /label=yzy-P765
     misc_feature    4383..4970
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(4854..4865)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5043..5276
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5348..5469
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5488..5623
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5661..5677)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5685..5701
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5709..5739)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5754..5775
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6063..6651)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(6822..7682)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7683..7787)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     8261..8277
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tgtcccattc agatcaccgt tttctgggca cggtagaaaa agaagccact ttttccaatc
     3301 ctaaaaccac tagcccaaat aaaggcaaag agaaggaggc tgaggatggc attattgctt
     3361 atgatgactg tggggtgaaa ctgactattg cttttcaagc caaggatgtg gaaggatcta
     3421 cttctcctca aataggagat aaggttgaat ttagtattag tgacaaacag aggcctggac
     3481 agcaggttgc aacttgtgtg cgacttttag gtcgtaattc taactccaag aggctcttgg
     3541 gttatgtggc aactctgaag gataattttg gatttattga aacagccaat catgataagg
     3601 aaatcttttt ccattacagt gagttctctg gtgatgttga tagcctggaa ctgggggaca
     3661 tggtcgagta tagcttgtcc aaaggcaaag gcaacaaagt cagtgcagaa aaagtgaaca
     3721 aaacacactc agtgaatggc attactgagg aagctgatcc caccatttac tctggcaaag
     3781 taattcgccc cctgaggagt gttgatccaa cacagactga gtaccaagga atgattgaga
     3841 ttgtggagga gggcgatatg aaaggtgagg tctatccatt tggcatcgtt gggatggcca
     3901 acaaagggga ttgcctgcag aaaggggaga gcgtcaagtt ccaattgtgt gtcctgggcc
     3961 aaaatgcaca aactatggct tacaacatca cacccctgcg cagggccaca gtggaatgtg
     4021 tgaaagatca gtttggcttc attaactatg aagtaggaga tagcaagaag ctctttttcc
     4081 atgtgaaaga agttcaggat ggcattgagc tacaggcagg agatgaggtg gagttctcag
     4141 tgattcttaa tcagcgcact ggcaagtgca gcgcctgtaa tgtttggcga gtctgtgagg
     4201 gccccaaggc tgttgcagct cctcgacctg atcggttggt caatcgcttg aagaatatca
     4261 ctctggatga tgccagtgct cctcgcctaa tggttcttcg tcagccaagg ggaccagata
     4321 actcaatggg gtttggtgca gaaagaaaga tccgtcaagc tggtgtcatt gactagggat
     4381 ccaatcaacc tctggattac aaaatttgtg aaagattgac tggtattctt aactatgttg
     4441 ctccttttac gctatgtgga tacgctgctt taatgccttt gtatcatgct attgcttccc
     4501 gtatggcttt cattttctcc tccttgtata aatcctggtt gctgtctctt tatgaggagt
     4561 tgtggcccgt tgtcaggcaa cgtggcgtgg tgtgcactgt gtttgctgac gcaaccccca
     4621 ctggttgggg cattgccacc acctgtcagc tcctttccgg gactttcgct ttccccctcc
     4681 ctattgccac ggcggaactc atcgccgcct gccttgcccg ctgctggaca ggggctcggc
     4741 tgttgggcac tgacaattcc gtggtgttgt cggggaagct gacgtccttt ccatggctgc
     4801 tcgcctgtgt tgccacctgg attctgcgcg ggacgtcctt ctgctacgtc ccttcggccc
     4861 tcaatccagc ggaccttcct tcccgcggcc tgctgccggc tctgcggcct cttccgcgtc
     4921 tccgccttcg ccctcagacg agtcggatct ccctttggcc gcctccccgc cggtaccttt
     4981 aagaccaatg acttacaagg cagctgtaga tcttagccac tttttaaaag aaaagggggg
     5041 actggaaggg ctaattcact cccaacgaaa ataagatctg ctttttgctt gtactgggtc
     5101 tctctggtta gaccagatct gagcctggga gctctctggc taactaggga acccactgct
     5161 taagcctcaa taaagcttgc cttgagtgct tcaagtagtg tgtgcccgtc tgttgtgtga
     5221 ctctggtaac tagagatccc tcagaccctt ttagtcagtg tggaaaatct ctagcagtag
     5281 tagttcatgt catcttatta ttcagtattt ataacttgca aagaaatgaa tatcagagag
     5341 tgagaggaac ttgtttattg cagcttataa tggttacaaa taaagcaata gcatcacaaa
     5401 tttcacaaat aaagcatttt tttcactgca ttctagttgt ggtttgtcca aactcatcaa
     5461 tgtatcttat catgtctggc tctagctatc ccgcccctaa ctccgcccag ttccgcccat
     5521 tctccgcccc atggctgact aatttttttt atttatgcag aggccgaggc cgcctcggcc
     5581 tctgagctat tccagaagta gtgaggaggc ttttttggag gcctagactt ttgcagagac
     5641 ggcccaaatt cgtaatcatg gtcatagctg tttcctgtgt gaaattgtta tccgctcaca
     5701 attccacaca acatacgagc cggaagcata aagtgtaaag cctggggtgc ctaatgagtg
     5761 agctaactca cattaattgc gttgcgctca ctgcccgctt tccagtcggg aaacctgtcg
     5821 tgccagctgc attaatgaat cggccaacgc gcggggagag gcggtttgcg tattgggcgc
     5881 tcttccgctt cctcgctcac tgactcgctg cgctcggtcg ttcggctgcg gcgagcggta
     5941 tcagctcact caaaggcggt aatacggtta tccacagaat caggggataa cgcaggaaag
     6001 aacatgtgag caaaaggcca gcaaaaggcc aggaaccgta aaaaggccgc gttgctggcg
     6061 tttttccata ggctccgccc ccctgacgag catcacaaaa atcgacgctc aagtcagagg
     6121 tggcgaaacc cgacaggact ataaagatac caggcgtttc cccctggaag ctccctcgtg
     6181 cgctctcctg ttccgaccct gccgcttacc ggatacctgt ccgcctttct cccttcggga
     6241 agcgtggcgc tttctcatag ctcacgctgt aggtatctca gttcggtgta ggtcgttcgc
     6301 tccaagctgg gctgtgtgca cgaacccccc gttcagcccg accgctgcgc cttatccggt
     6361 aactatcgtc ttgagtccaa cccggtaaga cacgacttat cgccactggc agcagccact
     6421 ggtaacagga ttagcagagc gaggtatgta ggcggtgcta cagagttctt gaagtggtgg
     6481 cctaactacg gctacactag aaggacagta tttggtatct gcgctctgct gaagccagtt
     6541 accttcggaa aaagagttgg tagctcttga tccggcaaac aaaccaccgc tggtagcggt
     6601 ggtttttttg tttgcaagca gcagattacg cgcagaaaaa aaggatctca agaagatcct
     6661 ttgatctttt ctacggggtc tgacgctcag tggaacgaaa actcacgtta agggattttg
     6721 gtcatgagat tatcaaaaag gatcttcacc tagatccttt taaattaaaa atgaagtttt
     6781 aaatcaatct aaagtatata tgagtaaact tggtctgaca gttaccaatg cttaatcagt
     6841 gaggcaccta tctcagcgat ctgtctattt cgttcatcca tagttgcctg actccccgtc
     6901 gtgtagataa ctacgatacg ggagggctta ccatctggcc ccagtgctgc aatgataccg
     6961 cgagacccac gctcaccggc tccagattta tcagcaataa accagccagc cggaagggcc
     7021 gagcgcagaa gtggtcctgc aactttatcc gcctccatcc agtctattaa ttgttgccgg
     7081 gaagctagag taagtagttc gccagttaat agtttgcgca acgttgttgc cattgctaca
     7141 ggcatcgtgg tgtcacgctc gtcgtttggt atggcttcat tcagctccgg ttcccaacga
     7201 tcaaggcgag ttacatgatc ccccatgttg tgcaaaaaag cggttagctc cttcggtcct
     7261 ccgatcgttg tcagaagtaa gttggccgca gtgttatcac tcatggttat ggcagcactg
     7321 cataattctc ttactgtcat gccatccgta agatgctttt ctgtgactgg tgagtactca
     7381 accaagtcat tctgagaata gtgtatgcgg cgaccgagtt gctcttgccc ggcgtcaata
     7441 cgggataata ccgcgccaca tagcagaact ttaaaagtgc tcatcattgg aaaacgttct
     7501 tcggggcgaa aactctcaag gatcttaccg ctgttgagat ccagttcgat gtaacccact
     7561 cgtgcaccca actgatcttc agcatctttt actttcacca gcgtttctgg gtgagcaaaa
     7621 acaggaaggc aaaatgccgc aaaaaaggga ataagggcga cacggaaatg ttgaatactc
     7681 atactcttcc tttttcaata ttattgaagc atttatcagg gttattgtct catgagcgga
     7741 tacatatttg aatgtattta gaaaaataaa caaatagggg ttccgcgcac atttccccga
     7801 aaagtgccac ctgacgtcta agaaaccatt attatcatga cattaaccta taaaaatagg
     7861 cgtatcacga ggccctttcg tctcgcgcgt ttcggtgatg acggtgaaaa cctctgacac
     7921 atgcagctcc cggagacggt cacagcttgt ctgtaagcgg atgccgggag cagacaagcc
     7981 cgtcagggcg cgtcagcggg tgttggcggg tgtcggggct ggcttaacta tgcggcatca
     8041 gagcagattg tactgagagt gcaccatatg cggtgtgaaa taccgcacag atgcgtaagg
     8101 agaaaatacc gcatcaggcg ccattcgcca ttcaggctgc gcaactgttg ggaagggcga
     8161 tcggtgcggg cctcttcgct attacgccag ctggcgaaag ggggatgtgc tgcaaggcga
     8221 ttaagttggg taacgccagg gttttcccag tcacgacgtt gtaaaacgac ggccagtgcc
     8281 aagctg
//
